MATCH PP 8W-Q 4x3 Ohm - tilbud!

NOK800,00 inkl. mva.
Ønskeliste
  • Produktinfo
  • Produktanmeldelser (0)
  • FØRPRIS 1290,-
  • You did not find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your "personalized" version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our "standard" subwoofers.

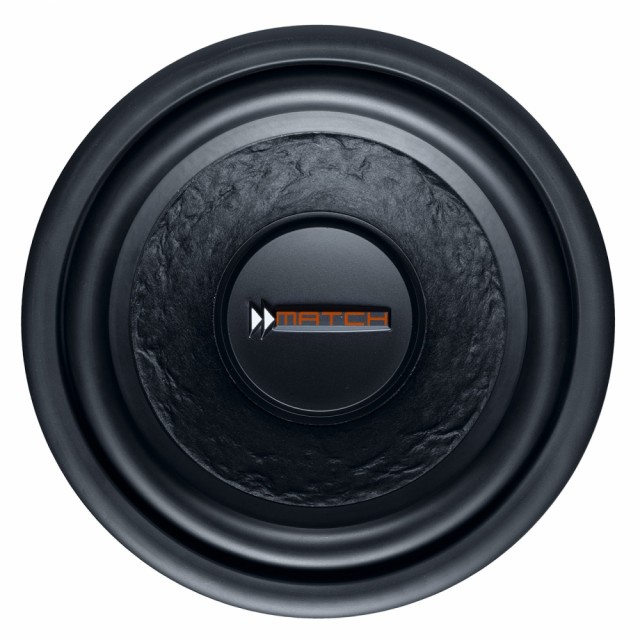

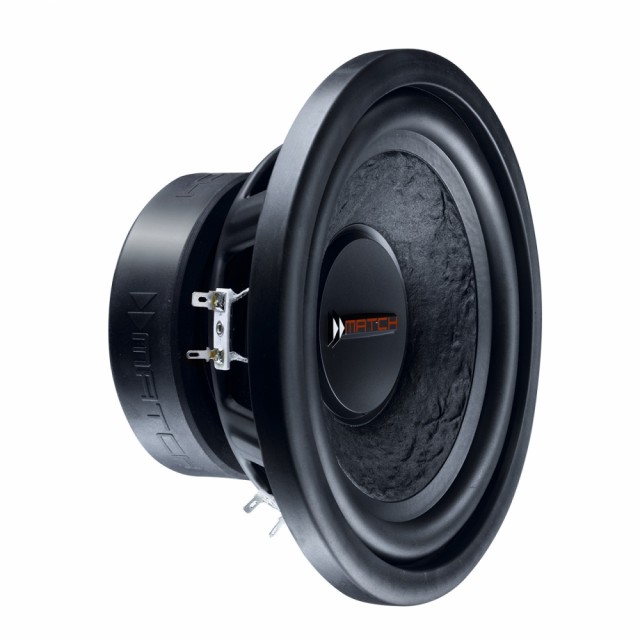

  • 8” / 200 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
  • Extremely stiff hand-scooped paper cone for maximum sound pressure
  • Double ventilated voice-coil for minimum compression effects
  • Powerful magnet for compact-sized vented enclosures
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers

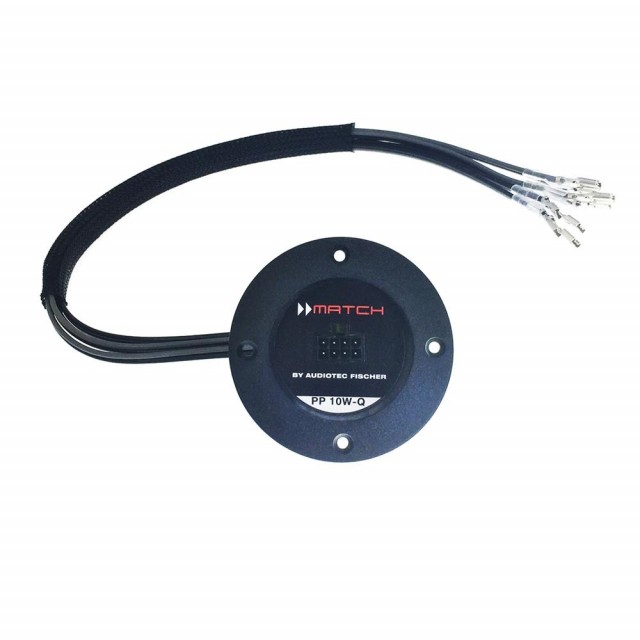

  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
  • Power RMS / max. P 200 / 400 Watts
  • Impedance Z 4 x 3 Ohm
  • Resonance frequency Fs 37 Hz
  • Total Q factor Qts 0.51
  • Equivalent air volume Vas 23 L
  • Force factor B*I 7.5 Tm
  • Efficiency 1 W / 1 m SPL 87 dB
  • Cone area Sd 222 cm²
  • Moving mass Mms 53 g
  • Voice coil diameter ø 50.8 mm
  • Outer diameter ø 212 mm
  • Installation diameter ø 183 mm
  • Installation depth 105 mm
  • Vented box Net volume 10 L
  • Port diameter ø 60 mm
  • Port area 25 cm²
  • Port length 25 cm
  • Port tuning frequency Fb 47 Hz
  • Lower limiting frequency (-3dB) 45 Hz
