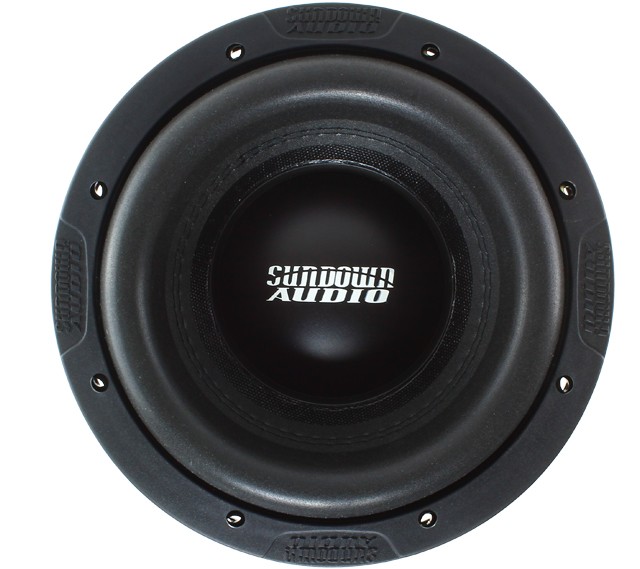

Sundown Audio X-8 V.2 – 750w RMS D4 ohm

Sundown Audio X-8 V.2 – 750w RMS Dobbel 4 ohms ellement

NOK3 290,00 inkl. mva.
  • Produktinfo
  • Produktanmeldelser (0)

The Sundown X-8, along with all other 8s in our line, is a unique driver within its line-up. Contrary to the design of the other X subwoofers the X-8 is more of an SPL oriented subwoofer. The X-8 suspension design (spider & surround) were designed around creating larger peaks for SPL purposes. It is built on our patented 8” subwoofer frame (US Patent D691595) just like the SA-8 v.3 so it shares the same massive mechanical clearances (2.5” p-p allowable).

For the X-8 v.2 we removed the vented spacer ring as we did on the SA-8 v.3 and added the same high-velocity vent-holes around the frame base below the spider. This allowed us to reduce the mounting depth a bit to expand installation options. We also added a series of machined channels down the full height of the pole to increase air based cooling and also to reduce audible air velocity though the motor.

The spider is a unique, progressive roll unit two layers thick. This spider was heavily FEA optimized to do the trick job of allowing large excursion capacity with a 2.5” coil on an eight inch subwoofer. The surround features a geometry very similar to the “SPL” cone options on our large woofers in a bit smaller size to suit the excursion capacity of this woofer. Both parts of the suspension support levels of excursion in excess of the linear limits of the motor & coil design.

While the X-8 is more of an SPL optimized woofer it does feature the highest linear x-max of any 8” in our line at a full 19mm one-way. It also features a very thick magnet ID shorting ring just like the SA-8 v.3 as well so will enjoy the same benefit of lowered inductive distortion. Make no mistake, the X-8 is still a very clean sounding subwoofer.

If the sound of the SA-8 is too smooth for you – meaning you want a more aggressive & punchy sound – then the X-8 is the woofer for you. If you want the highest SPL output from any 8” woofer in our line – then the X-8 is, once again, the woofer for you.

Features & Technology:

  1. Xmax = 19mm one-way by 70% BL
  2. RMS Power = 750-watts
  3. Solid Pole piece with chamfered edges & machined air channels for increased voice coil cooling
  4. High velocity under-spider frame vents
  5. Black Aluminum 2.5” voice coil former for superior heat dissipation
  6. High Temperature copper voice coil wire
  7. Large aluminum faraday ring (Magnet ID)
  8. Spring Loaded Terminals
  9. Stitched-On Double High-Power Tinsel Lead Wires
  10. High strength & patented cast aluminum frame
  11. Optimized for small ported enclosures
SpecificationsX 8″D2X 8″ D4
RE (ohms) 4.00 ohm 6.00 ohm
FS (Hz) 46.770 hz 48.506 hz
Vas (L) 4.190 3.933
Qes 0.544 0.533
Qms 4.432 5.542
Qts 0.485 0.486
Le (mH)
BL (NA) 18.508 23.218
Mms (Grams) 158.641 g 157.131 g
Cms (uM/N) 72.995 68.515
Sens (1w/1m) 80.8 db 81.1 db



  X 8
Lukka kasse Ikke Anbefalt
Porta kasse 21 – 29 Liter
Volum (sub) 3,7 Liter
Monteringsdybde 17,8 Cm
Ytre Diameter 22,1 Cm
Cut-Out Diameter 18,7 Cm
Anbefalt Tuning 32hz
Anbefalt Port Areal 77 – 103 Cm²
