Legend Series Amplifier
The legend Series Amplifiers is the masterpiece of the highest technical level by Rebec R&D team. It’s also an Important sign for Rebec upgrade to the High-End car audio system level. the rebec technical team through over ten years of cumulative experience and research, exceed Rebec aesthetic appearance and the sound quality concept, expect for the best amplifier, innovation, and the latest high-level results. The legend series amplifier design is perfect match the R&D technology and the concept from designer´s comprehension the music philosophy. with the world´s top standard and positioning for the power amplifier, perfection of sound performance.The Legend series amplifiers are available in ES2 and ES4.
Unique Electric Circuit Design:

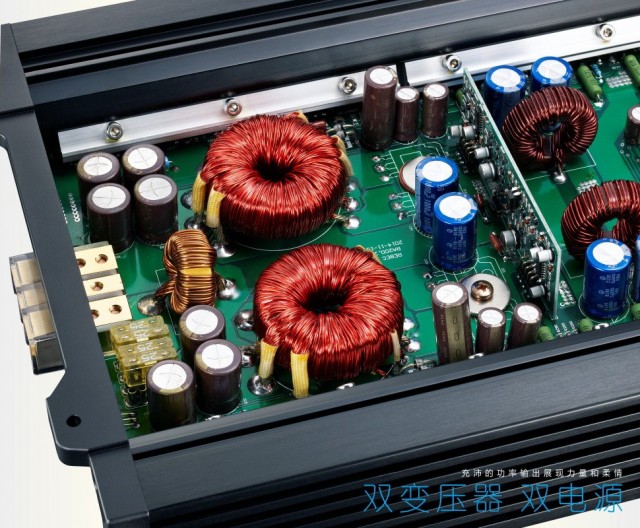

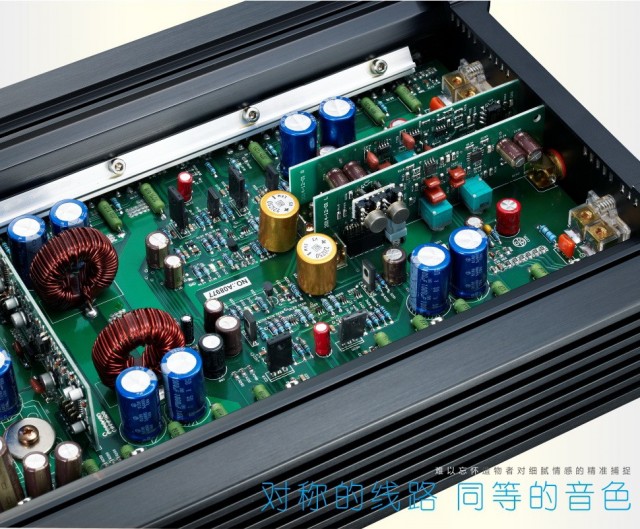

The power supply and audio signal are designed separately, they can make not interfere with each other and are completely isolated. The power amplifier´s signal-to-noise ratio, resolution, harmonic distortion parameters can be at the highest level. The dual power transformers ensure a strong dynamic sound.
Special Materials:

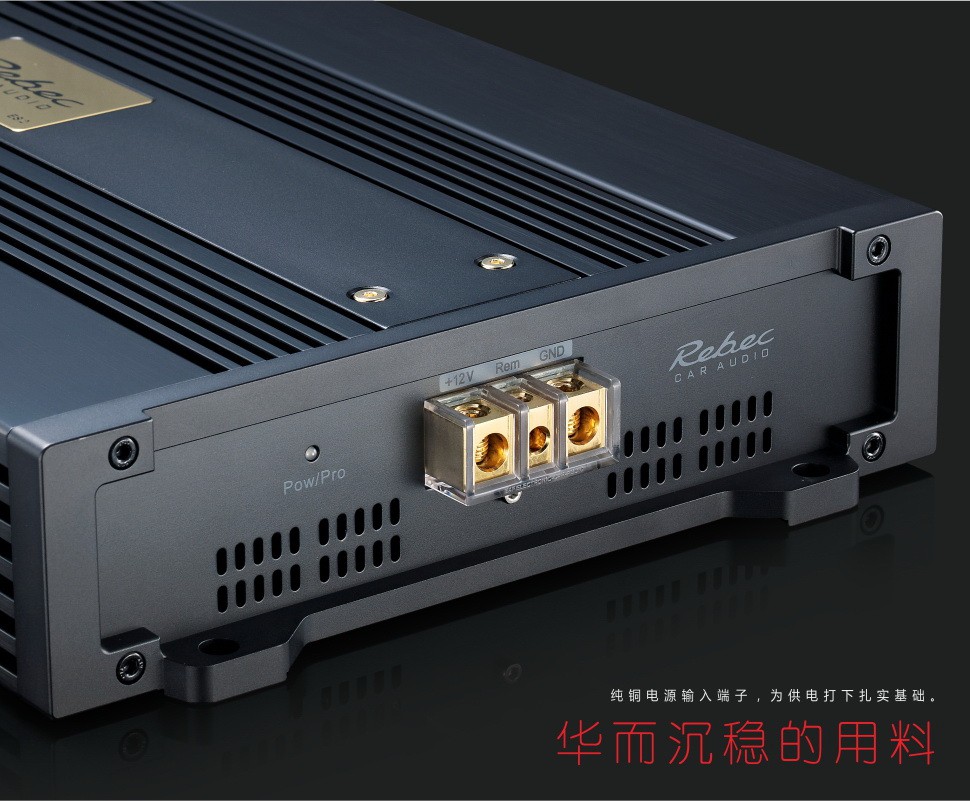

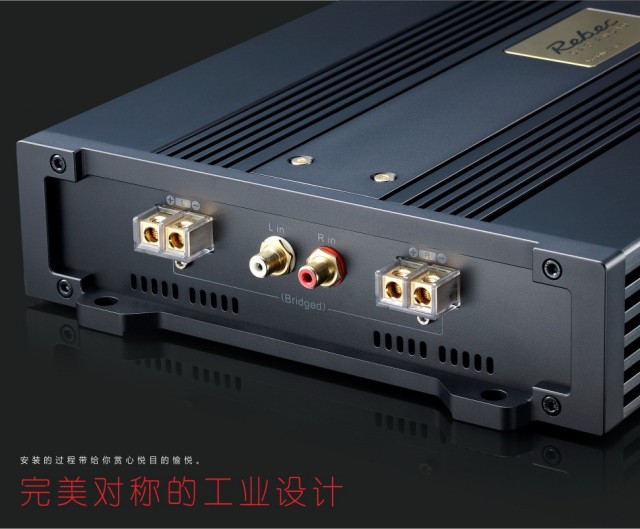

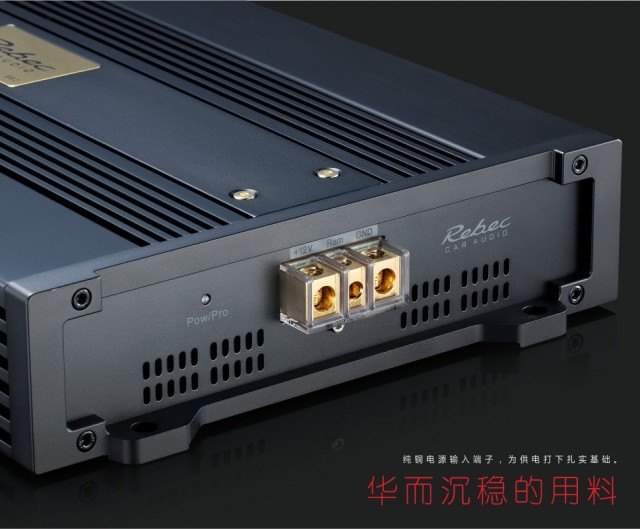

The power terminal and the speaker terminal are treated with pure copper CNC cut gold plating. and the internal resistance is almost zero, greatly reduces the loss of current and signal during transmission, thereby ensuring its high dynamics. The preamplifier uses a Hi-End grade gold-sealed single-operation LME49710HA, pure gold-plated pins, and it is produced by the world´s top SMT precision to ensure accurate and perfect reproduction of sound.

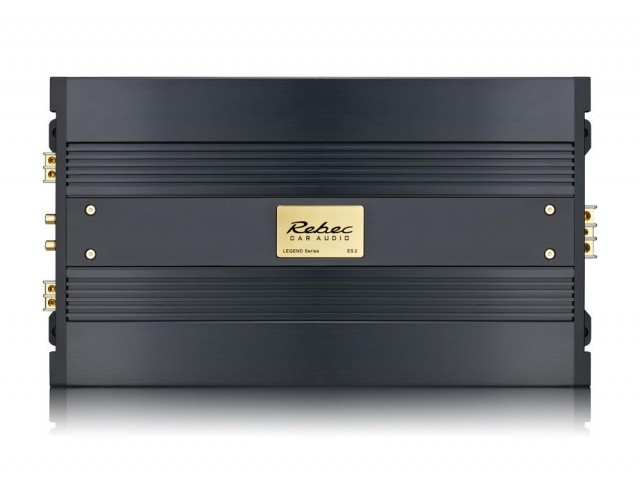

ES2 2-channel power amplifier
Operating mode: Class AB
Input sensitivity: 0.13-5.5V
Power supply: 10-16V
Frequency range: 10Hz-40KHz
Output power : 200W×2ch
Bridged output power: 760W
Signal to noise ratio: >105dB
Internal fuse: 25Ax4
Dimensions: 438×240×63（mm）
