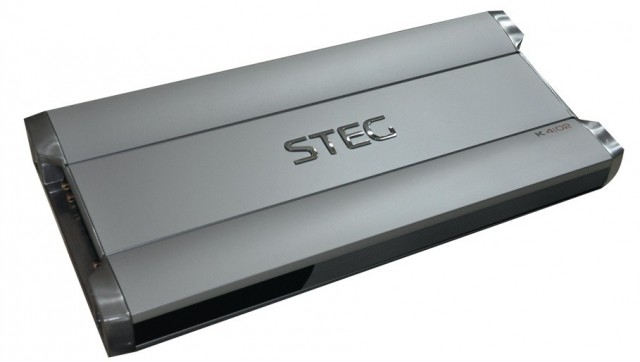

CONNECTING "SERIAL POWER"
PILOT 1ohm STEREO / BRIDGE 2ohm
ABILITY TO 'S.P.L.
STABILIZED POWER SUPPLY WITH 11 VOLT BATTERY
PROTECTION UNDER MANAGEMENT BY MICROPROCESSOR
USER DATA STORAGE AND INSTALLATION
PASSWORD PROTECTION OF DATA
DIGITAL SERIAL NUMBER
CONNECTING "STEG LINK 'TO PERSONAL COMPUTER
DOUBLE ADJUSTMENT FREQUENCY X-OVER TECHNOLOGY
SYSTEM "SMMS" STEG MULTIWAY MODULAR SYSTEM
DOUBLE FORCED "INTELLISPEED"
MADE IN ITALY
Power 4 ohms Watt RMS - 11 to 14.4 Volt 115 x 4
Power 2 ohms Watt RMS - 11 to 14.4 Volt 210 x 4
Power 4 ohms Watt RMS - 11 to 14.4 Volt 420 x 2
SENSITIVITY 'ENTRANCE: Volts RMS 0.2 V - 5 V
DIMENSIONS: 340 x 56 x 232 mm
WEIGHT: 6,47 Kg
Optional and additional features:
KIT HARDWARE & SOFTWARE PC CONNECTION "STEG MY MANAGER"
REMOTE CONTROLS AND VOLUME BASSBOOST
HUB CONNECTION STEGLINK UP TO 10 AMPS
CONNECTION MODULE "SERIALPOWER"
FREQUENCY UNITS IN AQXM2 56 VALORIQUALITA ':
PROJECT In respect of absolute quality criteria, which develops the K competition idea. Total overall harmony achieved with meticulous care of every detail. Even the smallest detail, is designed and built to best suit its function.
PRECIOUS MATERIALS Structure and termination fairings made completely of aluminum, finely processed and treated. The printed circuit board is constructed with materials that meet military and professional standard rules, reinforced with bars in gilded copper to handle the high currents involved.
High quality and precision Components, MOSFETs selected one by one, solid terminal blocks obtained full that accept large cables and passive components with very low tolerance.
DESIGN shapes drawn by the function, elegant lines and sophisticated. Designed to dissipate heat quickly, integrate INTELLISPEED fans placed in the hot spots, which varies proportionally to the temperature speed.
SOUND output stage and preamplifier as a synthesis of the know-how STEG. exclusive circuits as GR.I.P.S. (Which eliminates any external disturbance), Straigth-In (reduced signal path) and the new audiophile driver entirely by discrete components, the heart of Bel Sound K competition.
K competiton, the name of these new electronics. is the commitment made by STEG in achieving designed amplifiers, as well as for the sound, for competitions and for the SPL. The available power, high current and dinamicaimpressionante are among the features guaranteed by a project that has not spared on anything. The massive use of powerful semiconductors, the breakdown of the power of several transformers in parallel (in the picture, the K2.04 equipped with 4 transformers and inductors 4) and the use of an extremely effective dissipating system, provide all the energy and the reliability needed to drive continuously for all loads, up to 1 ohm.
SERIALPOWER is an exclusive method of connection in series of outputs, reserved for stereo models, network combines the power of two units as if they were a single amplifier.
FUNCTIONALITY ': The numerous functions on the input panel are ilsistema SMMS (STEG MULTIWAY MODULAR SYSTEM) .Doppi LP and HP filters separate and independent - Configurations High-pass, low-pass, band-pass, Flat - 12 selectable incline / 24 dB - bY-PASS output - Q filter 0,7 / 1,2 - Double frequency control technology with Switch 4-step oModuli AQXM2. SMMS allows the creation of sophisticated multi-way systems (3,4,5,6-way and more, depending on the installation needs), avoiding the use of expensive and noisy cross-over external heavily that degrade the sound. On the cover, an example of a complete system Front / Rear / Sub multi-amplified six-way, built using only the built-in functions SMMS K. amplifiers
CONTROL AND COMMUNICATION: MICROPROCESSOR
The K competition amplifiers incorporating an innovative of service operations management system and operation control. Compared to the commonly used analog techniques, each of the operational status monitoring function is performed by a microprocessor, also in charge of the management of new and important functions related to communication. Analyzing continuously circling, the digital system protects the amplifier STEG trouble by checking the power status, the grounding, short circuits and the presence of DC outputs, as well as the bumps on / off and the thermal state of the power devices (regulating the flow of cold air). If necessary, intervenes with muting (muting) or, in extreme cases, with the total power shutdown, protecting the electronics and connected devices. Each security event is identified by the LEDs in the control panel and, above all, in detail recorded on the built-in memory, as is the case for the "black box" of the aircraft.
PERSONAL COMPUTER: store data, K competition offers new employment opportunities. STEG has created a Hardware / Software kit, through STEGLINK connection enables communication between the amplifiers and the PC.
STEG MY MANAGER is the program that interacts with the integrated microprocessor, drawing on his memory the information stored during operation. Thanks to a simple and intuitive graphical interface, STEG MY MANAGER shows monitor the amplifier's status in real time, reporting key operational parameters such as power supply and remote, operating temperatures (left and right side of the heat sink), activities of the fans and, above all, detailed condition of the protections. The user, analyzing the information, is able to quickly determine the cause of any abnormalities.
In addition to instantaneous amplifier condition STEG MY MANAGER can view the history of security events. From one of the menu, you go to a section that collects the operational details and graphically summarizes the data for the last 14 protection interventions. The program, by reading data from the amplifier, faithfully reported temperatures, voltages and types of intervention, showing an analysis of the curves of accurate and useful trend, both in the overall verification of the audio system, both in the search for installation errors. MY STEG MANAGER provides for the connection of a HUB accessory designed to handle high-level realizations and professional systems Competitive, thanks to which it can connect to the PC up to 10 K competition amplifiers. Read, yes, but also write. The software in fact, allows to affect their personal details and the installer in a protected area of memory. The data will join the number of digital series (inserted during production) generates a digital signature that makes each unique amplifier, not contraffabile and always recognizable, regardless of tampering or theft.
