Rebec A8S

DSP Series Amplifier

The DSP amplifier combines a DSP audio processor with a class AB power amplifier. Satisfied the resolution and exquisiteness of class AB power amplifier, through adjustment from the DSP audio processorg, Filling the affect sounducture of car inetrior space, realize the regeneration of music, present a complete music stage in front of you. DSP amplifier can be non-destructive installation with the cars, doesn’t change the original structure, reduce the occupied space, can let the music more real and natural. The DSP series amplifiers reflects a new idea of the design, not only achieved good sound effects, also greatly saves the space and cost. In addition to computer tuning, you can also switch BT control on mobile phones. DSP Amplifiers include: DSP-A6II, DSP-A6SII (Bluetooth), DSP-A8II, DSP-A8SII (Bluetooth) , for different audio system configuration.

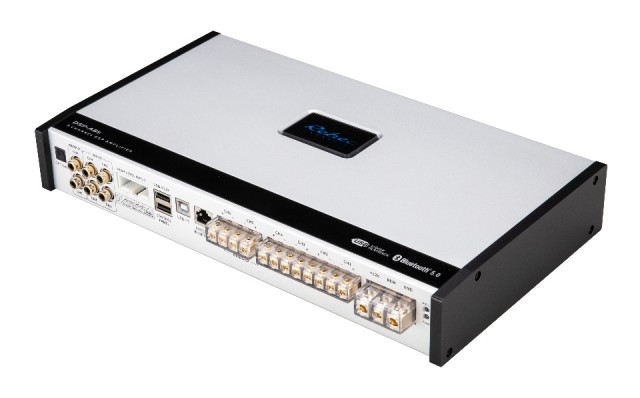

DSP-A8S

Operating mode:          Class AB

Input sensitivity:              0.4-2.0V (low level) 3,0-11,5V (high level)

Power supply:                 10-16V

Frequency range:          20Hz-20KHz

Output power :              70W×6ch RMS

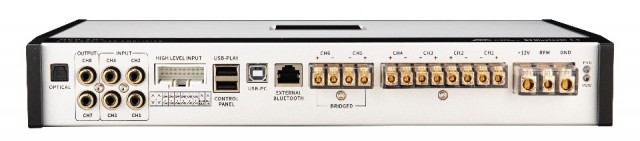

Input: 4ch low level 6 ch high level, external BT, optical, usb X2

Bridged output power: 210W RMS

Signal to noise ratio:      >101dB

Internal fuse:                  25Ax2

Dimensions:          337×193×52（mm）
