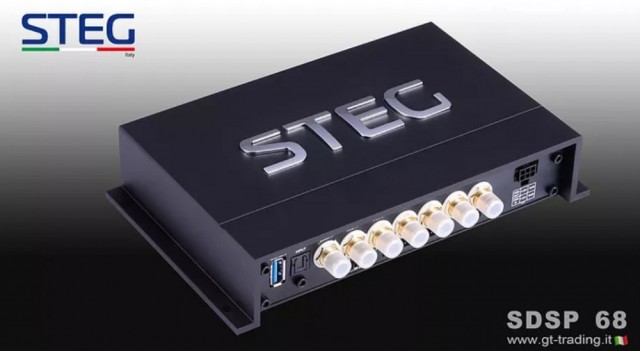

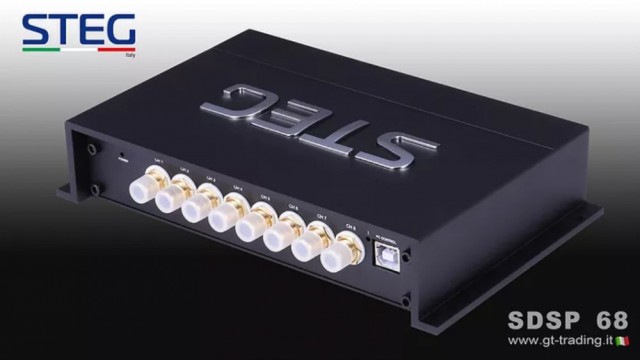

Digital Signal Processor to 6 inputs and 8 outputs.​

 32Bit 192Khz

• 6 input channels, 8 output channels

• Time-Delay with 0.02 msec steps, inclusion in cm, or msec.

• All settings are in real-time

• External control with display for presets and main settings

• USB connector for the PC via adjustments

• Input Low-Level or High-Level Auto-Sense (only in High-Level)

• Aux with Auto-Fading for stereo signal, speakerphone and navigation

• 6 presets

• Matrix Mixer to mix and match input / output channels at will

• SUM function (input) for active OEM systems / sources

• Operating voltage - 9 - 15 Volts (max. 5 sec. down to 6 Volts)

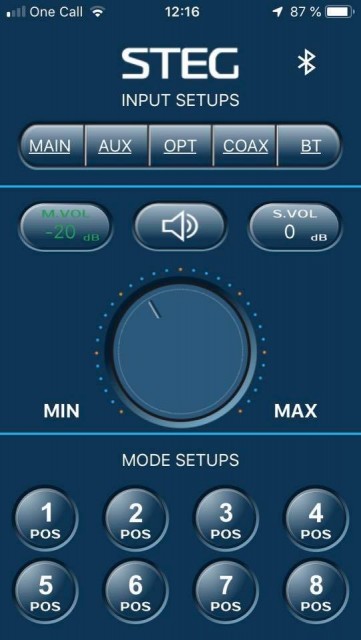

• Additional features – USB Bluetooth, DRC controller

• SPECIFICHE TECNICHE:

  ​

  • INPUT MODE: Low Level (LL) / High Level (HL)

  • INPUT IMPEDANCE: > 15Kohm (LL) / 47ohm (HL)

  • INPUT SENSITIVITY: RCA / Cinch 400mv 1 x COXA  Highlevel 5 - 10 Volts or 10 - 20 Volts

  • MAX OUTPUT SIGNAL: 5Vrms

  • THD DISTORTION: <0.002% @ 1Vrms

  • FREQUENCY RESPONSE: 20Hz ÷ 22KHz (within -0.3dB)

  • CHANNEL SEPARATION: >88dB (@ 1KHz)

  • SUPPLY VOLTAGE: 11V ÷ 15V

  • CURRENT CONSUMPTION: 0.4A @ 12V

  • GROUND ISOLATION vs CAR BODY: 1Kohm

  • AUTOSENSE: two operative modes (yes, HL only)

  • REMOTE OUTPUT: 50mA max.

  • COMMUNICATION PERIPHERALS: Bluethooth, Remote controller

  • OPTICAL BOARD: S/PDIF

  • SIZE: 197 x 120 x 39 mm (including fixing feet)

  • Manual

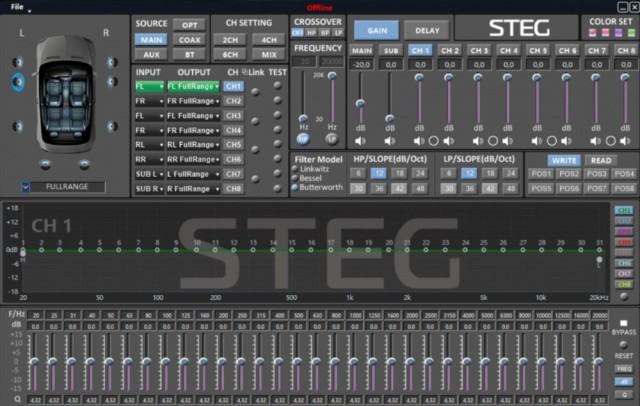

  • Software for justering
