STEG BZ40A

The new STEG Upgrade Kit includes years and years of development, hours and hours of listening tests to select the best materials and enclose them in a unique product. The new Kit for Mercede Benz is the ultimate expression of sound reproduction and uncompromising design, just take off the original and replace it with this new STEG Kit to appreciate a radical change of sound quality immediately without moving any bore or cutting off some cables from ´original. We have not neglected any details to bring in the exact replay of a Live concert. Another product that is about to become a reference for the world market.

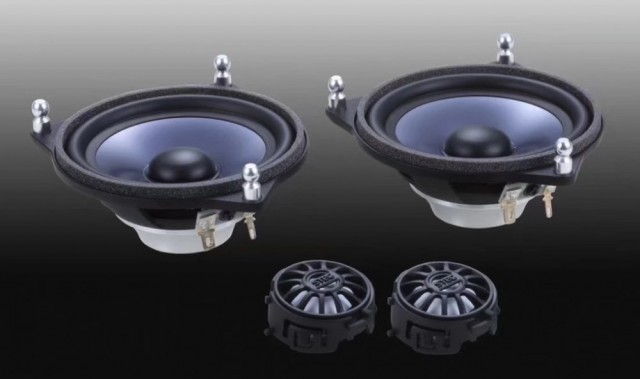

Midrange:

Cone Paper：Special rubber edge+ Aluminum

DCR Impedance：4.0 Ω

Maximum Power：30 W

Frequency Range：90-15000Hz

Sensityvity 1W/1M：88 dB

Qms：2.6

Qes：1.07

Qts：0.76

Mms：5.65G

Vas：1.25 L

Weight：0.18 KG

Mounting Depth：42.0 MM

Mounting Diameter：101.0 MM

Tweeter

Cone material: Ceramic

DCR Impedance: 4.0 Ω

Maximum power Input: 25 W

Frequency Range: 1500-22000 Hz

Sensityvity 1W/1M: 91dB

Weight: 0.05(KG)

Mounting Depth: 18 mm

Mounting Diameter:40mm
